Current State Registration Endpoint¶

Note: When updating the WCF connector the configuration file will lose the ExternalUsageAPIKey value

Endpoint URL¶

[POST] https://[address]:[port]/rest/ExternalSetCurrentState

The endpoint supports both Totalview userid and email

Configuration¶

Configure The API Key In The WCF Config¶

Find the installation directory for Totalview and navigate to WCF\MobileWeb_*
Open Totalview3WCF.exe.config

Set the value attribute for the ExternalUsageAPIKey to a secure and unique string

If ExternalUsageAPIKey is not present, you can add it yourself:

<?xml version="1.0" encoding="utf-8"?>
<configuration>

   ...

  <appSettings>
      <add key="ExternalUsageAPIKey" value=""/>
   </appSettings>

   ...

Calling The Endpoint¶

You will need to specify five parameters alongside a header:

Parameters

UserID - note: this field can be set to a userid or email
StateID
Comment
StartTime - note: this field should be set to unix time in milliseconds
EndTime - note: this field should be set to unix time in milliseconds
Attachment - note this field is optional

Headers

x-api-key - This is the API key you specified in Totalview3WCF.exe.config as ExternalUsageAPIKey

Example of unix time in milliseconds

Unix time is defined as seconds since 1/1/1970

The date: 20/6/2022 11:07:01 AM in unix is 1655719621 that means 1655719621 seconds have passed since 1/1/1970

When sending requests to the ExternalSetCurrentState endpoint we want unix time passed in milliseconds that means we need to multiply the unix time by 1000

That means 1655719621 should be passed as 1655719621000

Requirements for Attachment

The root of the XML has to be of type ATTACHMENTS
1. ATTACHMENTS can be sent without any child elements:
```
<ATTACHMENTS />
```

If ATTACHMENTS has descendants, the first level descendants should be of type ATTACHMENT

ATTACHMENT elements have four required attributes:
1. CAPTION is the attachment section caption shown in F5/F6 (In the Totalview Client).
2. ATTACHMENTID is an unique id for this attachment. This must be unique for each Attachment connector.
3. PROVIDER is the name of the Attachments connector in Totalview
4. VERSION is the version of the XML
All ATTACHMENT elements require atleast one FIELD descendant
1. FIELD elements have four required attributes:
  1. FIELDID is a unique id for this ATTACHMENTDEFINITION.
  2. CAPTION is the label for the field.
  3. DATAID corresponds to the ID of the ATTACHMENTDEFINITION in XML, SQL, or Business Central
  4. DATAVALUE corresponds to the VALUE of the ATTACHMENTDEFINITION in XML, SQL, or Business Central

<ATTACHMENTS>
   <ATTACHMENT CAPTION="Case" ATTACHMENTID="XMLCASE" PROVIDER="Attachment" VERSION="1.1">
      <FIELD FIELDID="CUSTOMER" CAPTION="Customer" DATAID="1000" DATAVALUE="Jackson Car Sale">
         <FIELD FIELDID="CASE" CAPTION="Case" DATAID="1001" DATAVALUE="Totalview 3 TRS">
            <FIELD FIELDID="ACTIVITY" CAPTION="Activity" DATAID="1002" DATAVALUE="Installation">
               <FIELD FIELDID="SUBACTIVITY" CAPTION="Sub activity" DATAID="1003" DATAVALUE="Server setup" />
               <FIELD FIELDID="WORKTYPE" CAPTION="Work type" DATAID="1007" DATAVALUE="On location" />
            </FIELD>
         </FIELD>
      </FIELD>
   </ATTACHMENT>
</ATTACHMENTS>

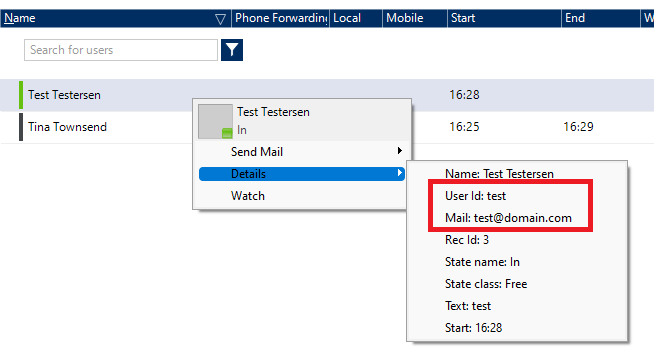

Finding The UserID / Email Address¶

You can find a user’s UserID and Email by right-clicking on the user in the Totalview Client

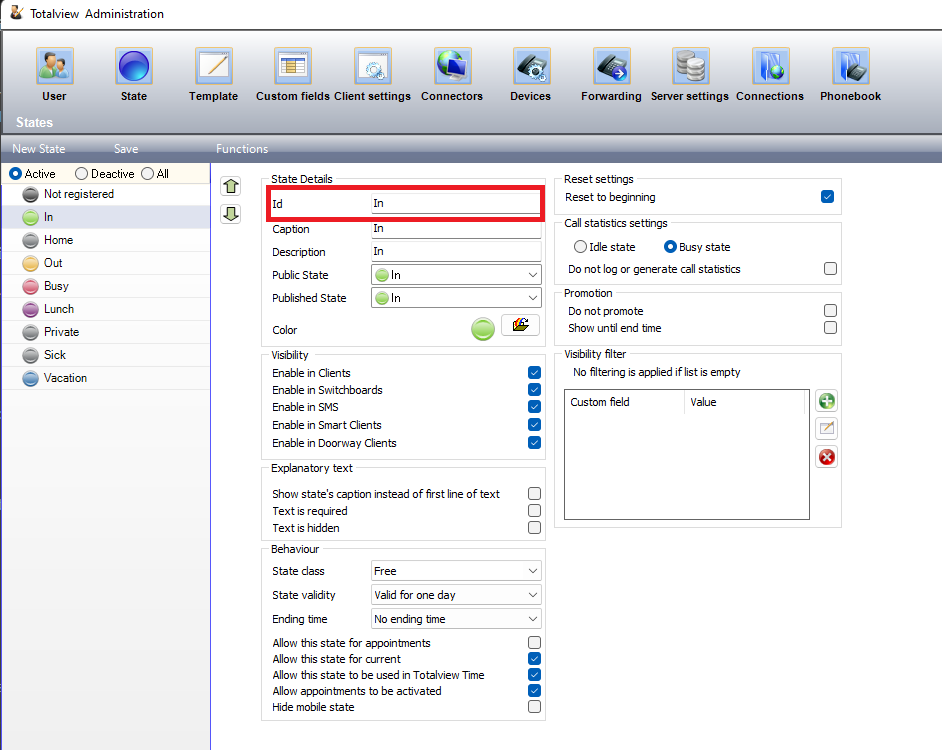

Finding The StateID¶

Open Totalview Admin
Navigate to the state view
Click on any of the states
- The StateID is the first field called Id

Example Calling The Endpoint Via cURL¶

curl --location --request POST 'https://[address]:[port]/rest/ExternalSetCurrentState' \
--header 'x-api-key: APIKEY' \
--header 'Content-Type: application/json' \
--data-raw '{
    "UserID":"test@domain.com",
    "StateID":"In",
    "Comment":"Production Support",
    "StartDate": "/Date(1655363801000)/",
    "EndDate": "/Date(1655394401000)/",
    "Attachment": "<ATTACHMENTS><ATTACHMENT CAPTION=\"Case\" ATTACHMENTID=\"XMLCASE\" PROVIDER=\"Attachment\" VERSION=\"1.1\"><FIELD FIELDID=\"CUSTOMER\" CAPTION=\"Customer\" DATAID=\"1000\" DATAVALUE=\"Jackson Car Sale\"><FIELD FIELDID=\"CASE\" CAPTION=\"Case\" DATAID=\"1001\" DATAVALUE=\"Totalview 3 TRS\"><FIELD FIELDID=\"ACTIVITY\" CAPTION=\"Activity\" DATAID=\"1002\" DATAVALUE=\"Installation\"><FIELD FIELDID=\"SUBACTIVITY\" CAPTION=\"Sub activity\" DATAID=\"1003\" DATAVALUE=\"Server setup\" /><FIELD FIELDID=\"WORKTYPE\" CAPTION=\"Work type\" DATAID=\"1007\" DATAVALUE=\"On location\" /></FIELD></FIELD></FIELD></ATTACHMENT></ATTACHMENTS>"
}'

Example of a successful call

{
   "ExternalSetCurrentStateResult": {
      "Error": "",
      "Status": true
   }
}

Example of a failed call

{
   "ExceptionType": "InvalidStateID",
   "Message": "No state found matching the StateId:In for userid:test@domain.com"
}
